The Complete Guide to Knitting Elastic for Textile Professionals

Knitting elastic, specifically produced using premium Rubber fabric and polyester rubber yarn formulations, serves as a vital narrow-fabric component that delivers exceptional stretch recovery, balanced tension control, and lasting structural integrity across demanding textile manufacturing applications.

Table of Contents

• Fundamentals of Knitting Elastic and Rubber Fabric Specifications

• Advanced Manufacturing Technologies in Elastic Fabric Knitting

• Key Industrial and Commercial Applications for Rubber Fabric Elastics

• Material Selection and Structural Engineering Criteria

• Quality Assurance Standards and Technical Performance Testing

• Operational Guidelines for Handling, Processing, and Storage

Fundamentals of Knitting Elastic and Rubber Fabric Specifications

Knitting elastic constructed with a balanced Rubber fabric matrix delivers superior multidirectional elasticity, breathability, and soft-touch edge stability compared to woven or braided alternatives.

The structural foundation of high-performance knitted elastic relies on the intricate interlooping of core elastomeric filaments with supportive wrapped yarns. Unlike rigid warp-and-weft woven narrow bands, a knitted Rubber fabric utilizes looped chain structures that allow the elastomeric core to expand and recover smoothly without triggering localized stress concentrations. In technical textile manufacturing, the elastomeric core—typically high-grade natural rubber or precision polyurethane—is entirely encapsulated or guided by synthetic face yarns, such as texturized polyester. This construction prevents direct friction between the core material and external sewing needles, preserving the physical elastomeric integrity over repeated stretch cycles.

In elastic narrow fabric manufacturing, precise denier selection and filament strand counts determine final tensile modulus and recovery dynamics. A typical high-grade elastic narrow fabric incorporates multiple continuous rubber strands layed parallel within warp-knitted tricot or raschel chains. Because loop geometries inherently allow open spacing between stitch rows, knitted Rubber fabric bands exhibit excellent breathability, making them ideal for skin-contact bands in medical, orthopedic, and premium apparel applications.

1. Structural Flexibility: Knitted loop configurations accommodate multi-axial stress better than rigid cross-woven matrices.

2. Edge Non-Fraying Characteristics: Locked tricot stitching prevents longitudinal unraveling when cut to custom assembly lengths.

3. Air and Moisture Permeability: Mesh-like stitch gaps permit thermal heat loss and sweat evaporation during direct skin contact.

Advanced Manufacturing Technologies in Elastic Fabric Knitting

Precision warp-knitting machines equipped with electronic positive-let-off systems represent the industry gold standard for producing consistent Rubber fabric elastics.

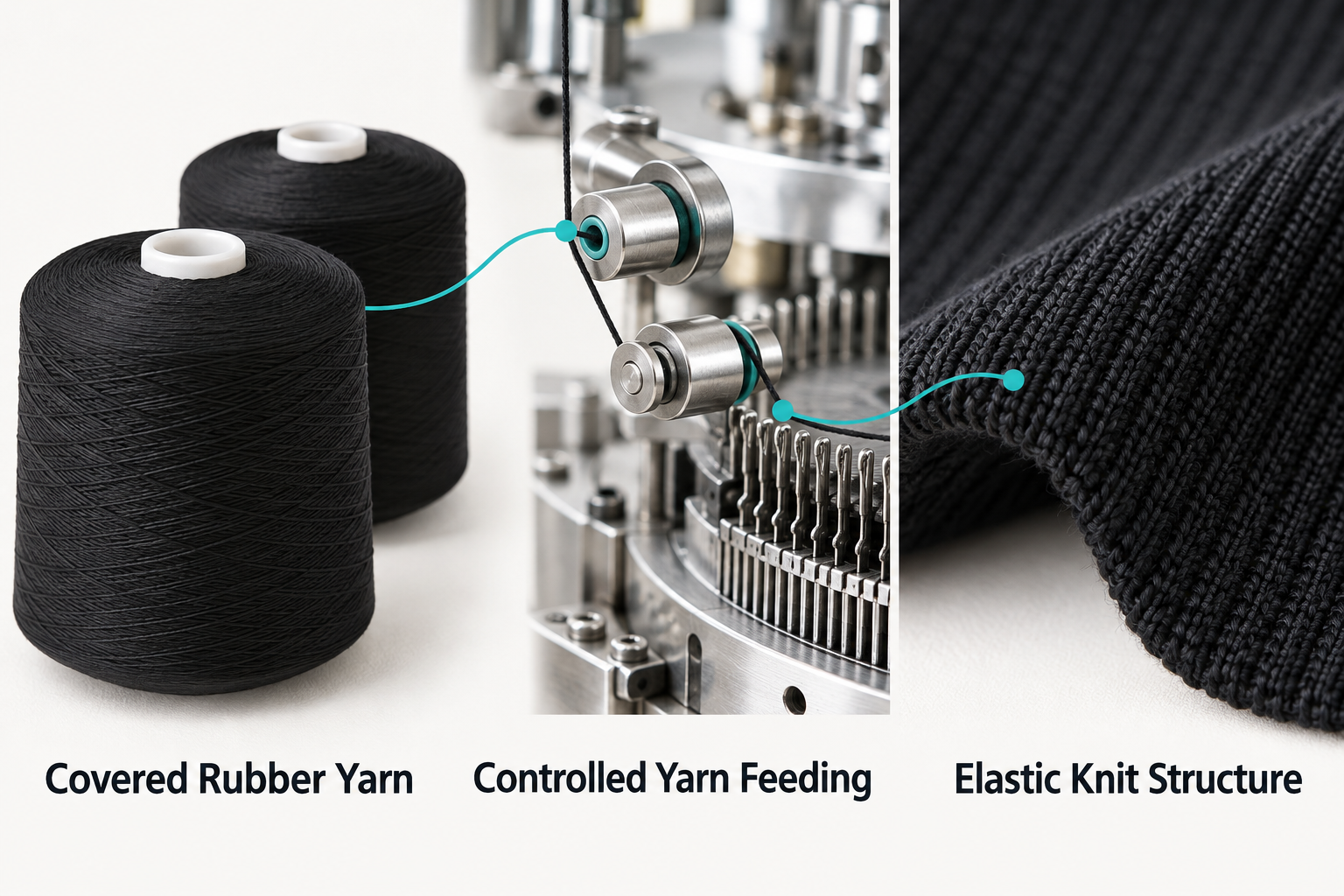

To produce stable, defect-free knitted elastic bands at scale, manufacturers employ advanced double-needle bar warp knitting machines or high-speed raschel looms. The primary engineering challenge during knitting is maintaining constant linear tension across every individual strand of natural or synthetic rubber. Fluctuations in tension lead to uneven elastic contraction along the tape length, causing bowing, skewing, and edge-waving defects. Modern machinery addresses this by utilizing positive feeding units driven by servomotors. These feeders continuously monitor and adjust the feed rate of the elastomeric core yarns in direct synchronization with the main stitch-forming needle bar.

In addition to tension control, stitch guide bar placement dictates the final density and structural lock of the Rubber fabric. By utilizing compound needle systems, the machine forms tight tricot or locknit chains around the rubber inlay strands. When manufacturing specialized hosiery top bands or socks ribs, incorporating a specialized Polyester Rubber Yarn for Socks ensures uniform contraction, preventing cuff slippage while maintaining long-term crosswise recovery.

1. Electronic Positive Feed: Eliminates stretch variation across production rolls by mechanically metering yarn input.

2. Compound Needle Assemblies: Enables high-speed loop formation without snagging delicate filament cover strands.

3. Multi-Guide Bar Controls: Allows complex patterns, ventilation channels, and variable compression zones within a single narrow tape.

Key Industrial and Commercial Applications for Rubber Fabric Elastics

High-durability Rubber fabric elastics provide essential tension control across footwear, medical support products, protective workwear, and specialized hosiery items.

Industrial demand for high-performance knitted elastics spans numerous sectors, each requiring unique stretch profiles, thermal tolerances, and resistance properties. In medical orthotics, knitted elastics provide controlled compression for joint braces, lumbar supports, and post-surgical garments. The inherent breathability of knitted Rubber fabric prevents skin maceration under prolonged compression therapy. Furthermore, the softness of knitted edges reduces pressure marks and friction damage on sensitive skin tissues.

In commercial hosiery and apparel production, knitted elastics are indispensable for waistbands, sleeve cuffs, leg bands, and sock openings. The integration of high-consistency materials like Polyester Rubber Yarn for Socks provides optimal rib tension in footwear products, keeping socks securely positioned without causing vascular restriction.

1. Medical and Orthopedic Compression: Used in wrist splints, knee braces, and burn treatment garments requiring sustained gradient pressure.

2. Technical Hosiery and Performance Apparel: Incorporated into sock cuffs, activewear waistbands, and athletic undergarments for shape retention.

3. Industrial and Personal Protective Equipment: Applied in safety goggle straps, respirator mask harnesses, and protective suit wrist closures.

Material Selection and Structural Engineering Criteria

Selecting the appropriate combination of natural rubber cores, synthetic elastomeric filaments, and high-tenacity polyester cover yarns directly dictates elastic performance and longevity.

When engineering a technical Rubber fabric, raw material selection governs the physical boundary conditions of the end product. Natural extruded rubber latex offers unmatched resilience, initial modulus, and tensile recovery. However, natural latex exhibits sensitivity to chlorine exposure, severe thermal baking, and petroleum-based oils. Where chemical or high-heat exposure is anticipated, synthetic elastomeric cores or modified polyurethanes serve as suitable technical alternatives, albeit with a slightly lower recovery response over extreme extended elongation.

The outer protective wrap yarn plays an equally critical role in structural performance. Texturized polyester wraps provide excellent abrasion resistance, UV stability, and rapid moisture-wicking capabilities. Choosing the correct denier and ply ratio between the elastomeric core and the synthetic cover yarn determines whether the final product behaves as a soft-stretch or high-modulus heavy-duty elastic. Implementing premium composite yarns like Polyester Rubber Yarn for Socks allows textile designers to balance cross-directional holding force with a smooth surface texture.

1. Core Strand Diameter Selection: Heavier gauges provide firm compression, while finer gauges deliver light contouring.

2. Cover Filament Density: Higher filament counts prevent core exposure during full elongation, safeguarding against mechanical abrasion.

3. Heat-Setting Requirements: Proper thermal stabilization prevents fabric shrinkage during high-temperature washing or industrial dyeing.

Quality Assurance Standards and Technical Performance Testing

Rigorous testing protocols evaluating stretch hysteresis, tensile fatigue, and environmental degradation ensure knitted Rubber fabric tapes meet international quality standard requirements.

Ensuring long-term functional reliability requires strict quality control measures across both raw material incoming inspection and finished elastic narrow fabric testing. Tensile hysteresis testing via constant-rate-of-extension (CRE) instruments remains the core metric for evaluating elastic degradation. During this test, the elastic band undergoes repeated cycling to a designated elongation percentage (typically 100% or 150%) before measuring force decay and permanent set. Premium Rubber fabric formulations exhibit minimal tension loss across hundreds of continuous cycles.

Environmental stability testing is equally critical for industrial textiles. Knitted elastic samples undergo accelerated laundering, thermal aging, and artificial perspiration exposure tests to verify that the core elastomer will not embrittle, yellow, or liquefy under realistic end-use conditions.

Quality Inspection Tip: Always conduct stretch testing on samples that have relaxed for at least 24 hours post-knitting. Residual internal stresses from spooling can skew tensile readings by up to 12%.

1. Cycle Fatigue Evaluation: Simulates multi-year product usage to detect micro-fractures in the rubber core.

2. Chemical and Solvent Resistance: Verifies durability against dry cleaning agents, body oils, and detergent additives.

3. Dimensional Stability Analysis: Ensures narrow bands retain specified width tolerances after high-temperature wash cycles.

Operational Guidelines for Handling, Processing, and Storage

Proper tension-free storage, controlled climate management, and correct sewing needle selection preserve the core integrity of Rubber fabric elastics during downstream assembly.

Preventing elastic failures during finished garment production requires strict adherence to processing protocols. When feeding knitted elastic into automated sewing or garment assembly equipment, technicians must ensure tensionless guiding paths. Feeding elastic under uncontrolled tension causes needle piercing through stretched rubber strands, leading to premature thread breakage, strand snapping, and puckered seams. Using ball-point needles (SES or SUK style) allows the needle tip to deflect around the elastic strands rather than severing them.

Storage climate control is equally important for preserving raw material shelf life. Natural rubber cores within a knitted Rubber fabric degrade when exposed to prolonged UV radiation, ozone emissions from nearby electrical motors, and excessive ambient heat.

Maintenance and Operational Best Practice: Routinely clean sewing machine feed dogs and tape guide rollers with lint-free wipes and anti-static spray. Compressed fiber lint buildup can alter tape tension profiles mid-run, creating width inconsistencies across assembly batches.

1. Tensionless Feeding Systems: Use over-feed meters on sewing workstations to avoid stretching the elastic tape during seaming.

2. Correct Needle Geometry: Standardize on medium ball-point needles to avoid cutting internal core rubber filaments.

3. First-In, First-Out (FIFO) Inventory Control: Rotate stock efficiently to process knitted elastic reels within their optimal 12-month shelf-life window.
