How to put elastic thread into your garments

To put elastic thread into garments effectively, manufacturers must control yarn tension, select compatible needle gauges, utilize specialized bobbin or lay-in insertion methods, and specify high-performance elastomer cores covered with protective filament sheaths to prevent slippage and breakage during high-speed industrial sewing or knitting.

Table of Contents

• Technical Principles of Elastic Insertion

• Preparing Industrial Sewing and Knitting Equipment

• Insertion Methods for Woven and Knitted Garments

• Material Specification Analysis

• Quality Control and Elastic Recovery Optimization

Technical Principles of Elastic Insertion

Inserting elastomeric elements into garment structures requires balancing linear tension and fiber elongation to achieve uniform structural contraction without exceeding the elastic yield point of the core elastomer.

In industrial manufacturing, incorporating elastic thread into a garment involves working with highly dynamic viscoelastic materials. Unlike conventional rigid polyester or cotton sewing threads, elastic yarns store potential energy when elongated and exert recovery force upon relaxation. When inserted through stitch formation or warp/weft insertion, this tension dictates the final gathering ratio, seam elasticity, and garment dimensions. Engineers must calibrate feeding mechanisms so that yarn elongation remains strictly within its linear elastic zone, usually between thirty percent and seventy percent of maximum draft, depending on the targeted modulus of the final fabric.

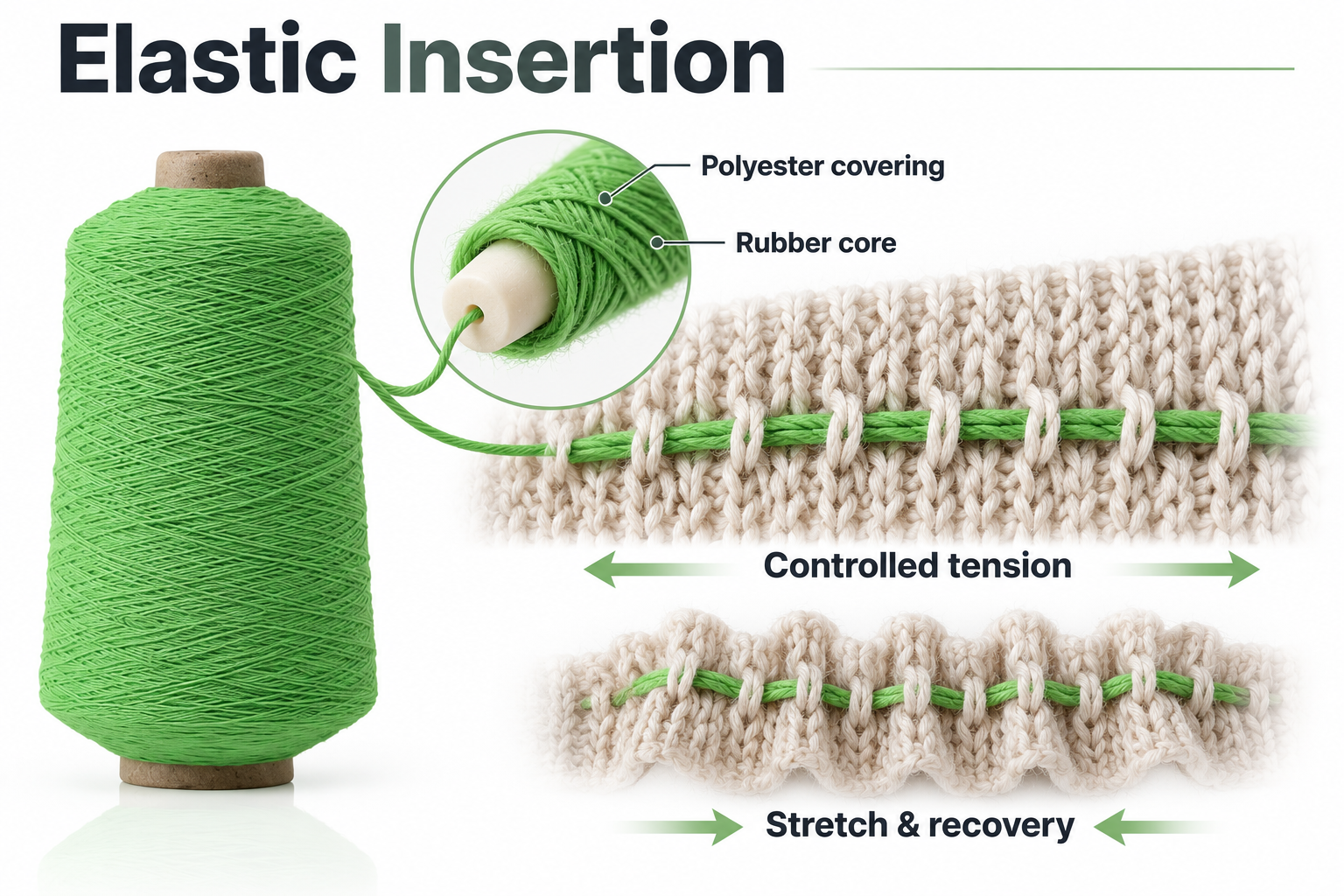

The structural interaction between the elastomeric core and surrounding fibers governs downstream processing. Bare elastomeric threads often exhibit high friction coefficients against machine guides, leading to stick-slip dynamics and erratic tension spikes. To overcome this, advanced manufacturing utilizes single or double covering techniques, where continuous filament yarns, such as polyester or nylon, are helically wrapped around a natural or synthetic rubber core. This structure shields the delicate elastomer core from friction, thermal degradation caused by needle friction, and mechanical abrasion during high-speed sewing or circular knitting operations.

When designing activewear, sock cuffs, or flexible waistbands, choosing the right material composition is paramount. Utilizing high-tenacity wrapped elastomeric components ensures that the final industrial polyester rubber fabric yarns maintain consistent extension and recovery cycles across repeated wash and wear operations without structural core snapping.

Fiber Mechanics and Elastic Core Parameters

Working Principle: The mechanics of elastomeric thread draft rely on controlled speed differentials between input feed rollers and output stitch formation units, generating continuous, proportional linear tension across all active feeds.

Preparing Industrial Sewing and Knitting Equipment

Proper machine setup requires reducing needle thread tension, adjusting presser foot pressure, installing rounded needle points, and feeding elastic thread under constant draft ratio conditions.

Calibrating industrial machinery for elastic insertion requires a complete departure from standard rigid thread settings. In lockstitch sewing machines, elastic thread is typically loaded into the bobbin case rather than fed through the upper needle assembly. This prevents excessive stretching caused by complex upper thread paths and high-frequency needle bar movements. Upper needle thread tension must be reduced to balance the lower elastic thread, allowing the stitch lock point to rest precisely in the center of the textile substrate without causing severe fabric puckering.

When utilizing automated knitting machines or specialized chainstitch machinery, positive feeding units are required. Passive tension disks introduce uncontrolled drag, resulting in variable elastic density across the garment panel. Positive feeding devices actively unwind the elastic thread from the spool at a calculated surface velocity relative to the machine operating cycle, ensuring absolute uniformity in draft ratio. Furthermore, needle selection must prioritize ball-point geometry (such as SES or SUK light/medium ball points) to deflect past structural yarns without piercing or severing the internal elastomeric core of the insertion thread.

To maximize output quality in automated sock knitting and narrow elastic weaving, equipment operators favor specialized raw materials. Integrating heavy-duty polyester wrapped rubber thread for socks prevents yarn breakage at high feed rates, drastically minimizing machine downtime and maintaining structural edge tension in technical hosiery applications.

Machine Setup Calibration Parameters

Insertion Methods for Woven and Knitted Garments

Elastic thread is incorporated into garments through bobbin-wound shirring, direct cover stitching with presser attachments, or lay-in knitting techniques integrated into structural loops.

Garment gathering via lockstitch shirring requires hand-winding or low-tension mechanical winding of the elastic thread onto the bobbin bobbin hub. The elastic thread must sit smoothly without high initial tension, allowing the tension spring on the bobbin case to exert minimal resistance. As the machine forms stitches with conventional upper thread, the lower elastic thread contracts upon exiting the feed dog zone, creating uniform, multi-row gathered panels commonly used in sleeve cuffs, dress bodices, and flexible waist inserts.

In knitted garment production, particularly for seamlessly engineered sportswear, leg bands, and socks, lay-in elastic insertion represents the primary industry standard. In this process, the elastic thread does not form complete knitted loops itself; instead, it is laid horizontally between front and back needle loops during specific course passes. The structural loops of the main ground yarn trap the elastic thread securely within the matrix. This method produces exceptional dimensional stability, controlled recovery force, and maximum vertical extension without distorting the overall fabric visual structure.

High-speed production facilities handling heavy compression elements rely heavily on standardized yarn components. Specifying a robust polyester rubber yarn ensures that lay-in courses during knitting maintain optimal elastic recovery while resisting high-temperature steam boarding processes.

Comparison of Garment Elastic Insertion Techniques

Maintenance Tip: Always clean machine lint traps and polished thread guides after processing natural rubber elastomeric threads, as microscopic particulate build-up accelerates guide wear and induces localized tension spikes.

Material Specification Analysis

Choosing between natural latex cores and synthetic elastomers depends on targeted stretch modulus, laundering chemistry requirements, heat resistance, and long-term recovery limits.

Natural rubber core yarns possess superior initial modulus and immediate stretch recovery compared to standard synthetic counterparts. When wrapped with high-tenacity polyester filament sheaths, these core yarns exhibit phenomenal tensile durability, making them the preferred choice for heavy-duty elastic bands, footwear, and specialized performance socks. European apparel clients frequently demand high-density double-covered construction because the dual protective counter-wrapped layers prevent core slippage (strip-back) when cut during garment assembly.

Synthetic elastomers offer superior resistance to oil, chlorine, and elevated dry-heat setting temperatures, though their immediate recovery force is lower than natural latex cores. The selection of outer covering yarn plays an equally vital role: polyester outer wraps provide quick-drying capabilities and high colorfastness, while nylon wraps offer maximum abrasion resistance and a softer hand feel against the skin.

Elastic Core Material Specification Comparison

Quality Control and Elastic Recovery Optimization

Ensuring consistent stretch performance across garment manufacturing batches requires strict tension monitoring, post-sewing thermal relaxation, and standardized tensile testing protocol compliance.

After elastic thread insertion, completed garment panels must undergo a tension relaxation phase. During high-speed mechanical sewing or knitting, the inserted elastomeric thread remains under temporary strain. Immediate dimensional cutting or final finishing without relaxation leads to severe size variance between production lots. Subjecting panels to controlled steam relaxation allows the inner rubber core to contract back to its true equilibrium length, setting the final stitch density and fabric weight per square meter uniformly.

Quality control protocol requires periodic testing of seam extension limits and elastic fatigue. Test specimens undergo cyclic loading up to seventy percent of their ultimate elongation limit for thousands of cycles. The residual deformation percentage indicates the long-term durability of the rubber fabric blend. If residual deformation exceeds five percent, engineers must evaluate whether the thread draft ratio during insertion was too high, or if thermal degradation occurred during needle penetration or steam drying phases.

1. Verify yarn draft calibration on positive feed units every shift using digital tension meters.

2. Ensure needle cooling systems are active during long production runs to avoid core melting.

3. Allow sewn or knitted panels to condition at standard room temperature for 24 hours prior to final garment assembly.

Conclusion

Successfully integrating elastic thread into garment production requires an alignment of fiber selection, mechanical calibration, and structural design. By selecting premium double-covered elastomeric yarns and enforcing precise tension control across all sewing and knitting pathways, apparel manufacturers eliminate common production defects such as needle cutting, uneven gather ratios, and early elasticity loss. Investing in engineered core-wrapped yarn specifications guarantees consistent seam recovery, superior wear comfort, and elevated garment durability across all commercial applications.
